產品特點 | Feature

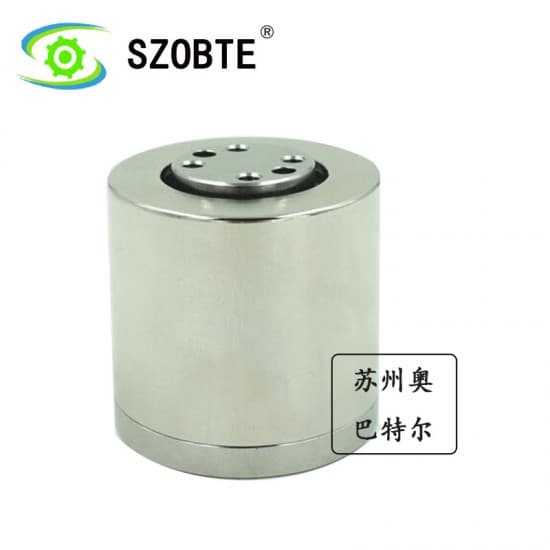

Three dimensional force sensor
Senior alloy steel
Easy to install
Height of low rogidity
Suitable for industrial weighing systems, overload protection on robot heads, testing machine. etc
三維力傳感器
優質合金鋼材質
安裝簡便
高度低 剛性好
適用于工業稱重系統，機器人手過載保護測式設備等
量程 | Capacities
X:25/50N,Y：25/50N,Z:50/100N
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
1.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.2% of rated output |
|
Nonlinearity |
非線性 |
±0.5% of rated output |
|
Hysteresis |
滯后 |
±0.5% of rated output |
|
Repeatability |
重復性 |
±0.2% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
700 Ω±10Ω |
|
Output Impedance |
輸出阻抗 |
700 Ω±10Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP67 |
|
Construction |
電線 |
0-15t(3m)35-100t(12m) |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：CL-TR4/35X50Y100Z |
|
Cable Color Code |
導線顏色 |
EXC:Blue(+E) Black(+E) XSIG:Gray(+S) YSIG:Brown(+S) Yellow(-S) ZSIG:White(+S) Red(-S) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
