懸臂梁式，優質不銹鋼材質，全密封焊接，高精度，高穩定性，防爆（可選），安裝簡便、快速，適用于平臺秤、攪拌站、皮帶秤和配料秤等。
•懸臂梁式
•優質不銹鋼材質
•全密封焊接
•高精度
•高穩定性
•防爆（可選）
•安裝簡便、快速
•適用于平臺秤、攪拌站、皮帶秤和配料秤等

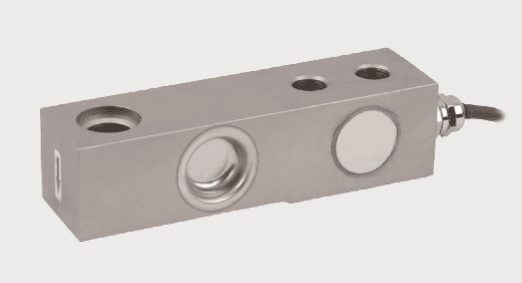

•Single ended shear beam load cell
•Senior stainless steel
•All sealed by welding
•High accuracy
•High stability
•Anti-explosion(option)
•Easy to install
•Suitable for floor scales,blending mixing systems,belt scales and batching systems,etc
Capacities 量程
250kg,500kg,1000kg,2000kg,3000kg,5000kg
Schematic 接線方式
Red：＋ input 紅色： ＋ 激勵
Black：－ input 黑色： － 激勵
Green：＋ output 綠色： ＋ 信號
White：－ output 白色：－ 信號
Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用溫度范圍 |
-10ºC to + 70ºC |
|
Temp. Compensated |
溫度補償范圍 |
150% |
|
Safe Overload |
安全載荷 |
-10ºC to + 40ºC |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
絕緣阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
|
Cable Length |
導線長度 |
6m |
|
Cable Color Code |
導線顏色 |
ed(+E) Black(-E) Green(+S) White(-S) |
