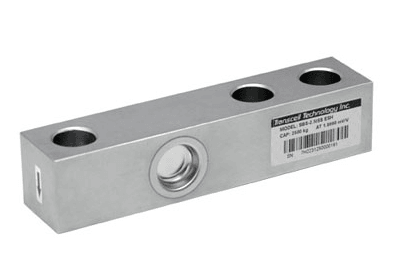

懸臂梁式，優質不銹鋼材質，全密封焊接，高精度，高穩定性，安裝簡便、快速，適用于平臺秤、攪拌站、皮帶秤和配料秤等。
•懸臂梁式
•優質不銹鋼材質
•高精度
•高穩定性
•安裝簡便、快速
•表層鍍鎳防腐處理
•適用于平臺秤、攪拌站、皮帶秤和配料秤等
•Single ended shear beam load cell
•Senior stainless steel
•All sealed by welding
•High accuracy
•High stability
•Easy to install
•Suitable for floor scales,blending mixing systems, belt scales and batching systems,etc
Capacities 量程
Schematic 接線方式
Red：＋ input 紅色： ＋ 激勵
Black：－ input 黑色： － 激勵
Green：＋ output 綠色： ＋ 信號
White：－ output 白色：－ 信號
Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/ºC |
|
Temp. effect on zero |
零點溫漂 |
≤0.002% of rated output/ºC |
|
Safe Temp. Range |
可用溫度范圍 |
-10ºC to + 70ºC |
|
Temp. Compensated |
溫度補償范圍 |
150% |
|
Safe Overload |
安全載荷 |
-10ºC to + 40ºC |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Insulation Resistance |
絕緣阻抗 |
≥5000 M ohm (50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
最大激勵電壓 |
15V DC/AC |
|
Cable Length |
導線長度 |
6m |
|
Cable Color Code |
導線顏色 |
ed(+E) Black(-E) Green(+S) White(-S) |
