產品特點 | Feature
Senior aluminum
Can be directly installed on the ground or base structure
Easy to install, stabile & reliable
An explosion-proof
Suitable for truck scale, electronic scale, scales and other filling materials industry
優質合金鋼材質
可直接安裝在地上或者基礎結構上
安裝簡便、快捷，穩定可靠
本安防爆Exia IIC T6
適用于汽車衡，攪拌站，灌料秤等行業
量程 | Capacities
10kg , 20kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1t, 2t, 3t,5t, 10t, 15t, 20t
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |

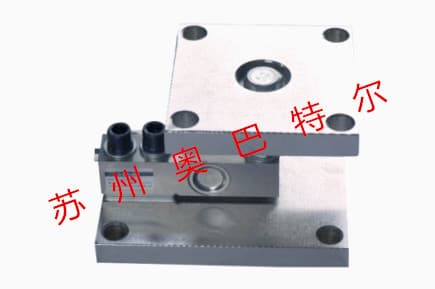

點擊圖片查看原圖
