產品特點 | Feature

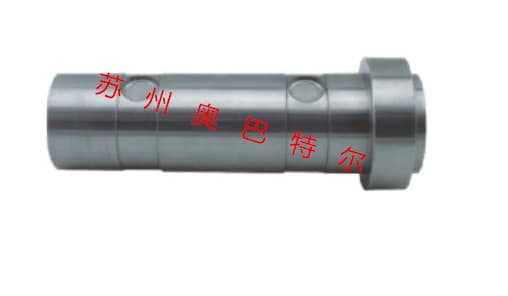

Double ended beamload cell
Senior alloy steel
Structure is simple,safe and reliabel
Apply to wharf special scales, crane equipment
雙剪切梁式
優(yōu)質合金鋼結構
結構簡單，安全可靠
適用于港口、碼頭等貨物計量及啟閉機、起吊設備的安全檢測
量程 | Capacities
5t，7t，10t，15t，20t
客戶可以根據(jù)自己需求定制量程。
技術參數(shù) | Specification
|
Rated Output |
額定輸出 |
2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP65 |
|
Construction |
電線 |
3m |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-D02/5t |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |
 |
 |
 |
 |
 |
 |
 |
 |
 |
