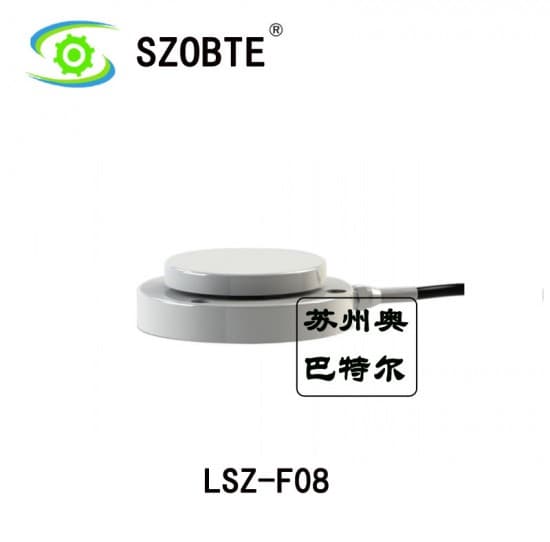

產品特點 | Feature
Mini-design，easy to install and use
Made of stainless steel, size and capacity could be customized
Force measurement in small space installation, such as feeling tester for keyboard switch, compression force measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
外形小巧，便于安裝
不銹鋼材料，量程、尺寸可定制
主要應用于按鍵手感度測試儀，冷熱壓機壓力檢測、機器人手抓力及醫療注射泵，壓裝機等安裝控件小的力值檢測領域
量程 | Capacities
0-10kg, 20kg, 30kg, 50kg
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.05% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Hysteresis |
滯后 |
±0.01% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+30℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Protection |
防護等級 |
IP65 |
|
Construction |
電線 |
2m |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-S68/20kg |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |
