產品特點 | Feature

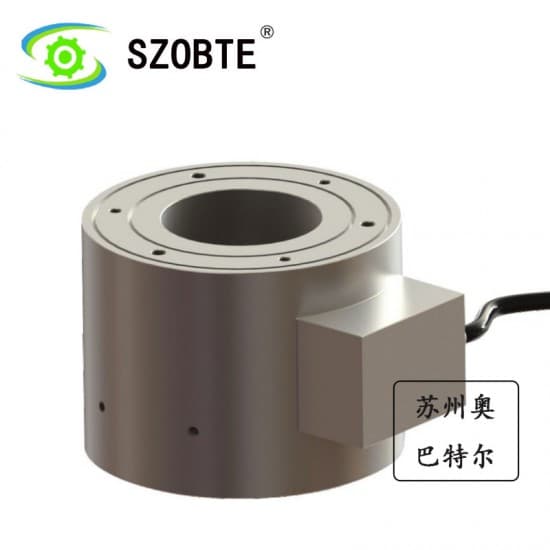

Made of stainless steel with good stability
Size and capacity could be customized
Mainly used for equipments of punching, testing equipments of impact force, pneumatic hydraulic equipments.
不銹鋼材質，穩定性好
尺寸、量程可定制
適用于自動化沖壓設備，沖擊力檢測設備，氣動液壓設備等領域
量程 | Capacities
20t, 30t, 40t, 50t
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
1.0-1.5mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.05% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.1% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.05% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
5V DC/AC |
|
Maximum Excitation |
最大工作電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP65 |
|
Construction |
電線 |
2m |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不 需填寫) 如：LSZ-A04/100kg |
|
Cable Color Code |
導線顏色 |
Red(+E) Black(-E) Green(+S) White(-S) |
