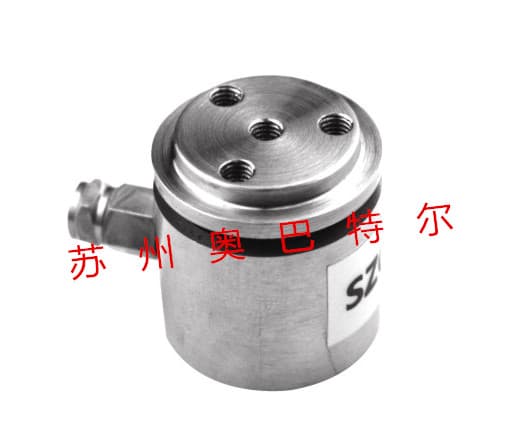

LSZ-A17 稱重傳感器
產品特點 | Feature
High quality stainless steel material
Easy to install
Height of low rigidity
Suitable for measuring occasions with limited space
優質不銹鋼材質
安裝簡便
高度低 剛性好
適用于空間有限的測力場合使用
量程 | Capacities
5kg 10kg 20kg 50kg 100kg 150kg 200kg
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
1.0-1.5mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.02% of rated output |
|
Nonlinearity |
非線性 |
±0.02% of rated output |
|
Hysteresis |
滯后 |
±0.02% of rated output |
|
Repeatability |
重復性 |
±0.02% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Protection Class |
防護等級 |
IP65 |
|
Construction |
電線 |
2m |
|
type |
型號說明 |
?型號+‚量程+ƒ非標功能F(無非標則不需填寫) 如：LSZ-C7/5kg |
|
Protection Class |
防護等級 |
IP65 |
