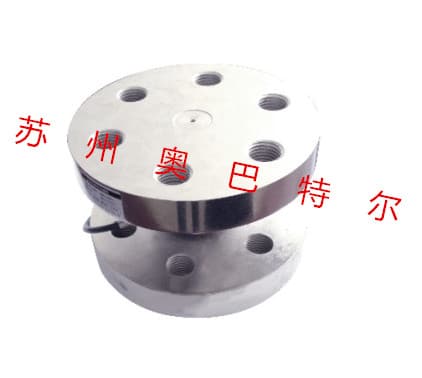

LSZ-A09 柱式稱重傳感器
產品特點 | Feature
column load cell
Senior aluminum
Easy to install, dynamic performance，With automatic adjustment of the focal point of the function,seal welding,to achieve protection grade IP68.
Apply to the car weighter,orbit weighter,large-tonnage hopper scales.
柱式傳感器
優質鋁合金材質
安裝方便，動態性能好， 具有較強的自動調心功能，焊接密封，防護等級達到IP68
適用于汽車衡、動態軌道衡、大噸位料秤等衡器。
量程 | Capacities
3kg 5kg 10kg 20kg
客戶可以根據自己需求定制量程。
技術參數 | Specification
|
Rated Output |
額定輸出 |
2.0mv/v±1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep After 30 Minutes |
蠕變 |
±0.03% of rated output |
|
Nonlinearity |
非線性 |
±0.03% of rated output |
|
Hysteresis |
滯后 |
±0.03% of rated output |
|
Repeatability |
重復性 |
±0.03% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.002% of applied output/℃ |
|
Temp. Effect on zero |
零點溫漂 |
≤0.002% of rated output/℃ |
|
Safe temp. Range |
可用溫度范圍 |
-10℃ to+70℃ |
|
Temp.Compensated |
溫度補償范圍 |
-10℃ to+40℃ |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 Ω±20Ω |
|
Output Impedance |
輸出阻抗 |
350 Ω±5Ω |
|
Insulation Resistance |
絕緣阻抗 |
≥5000MΩ(50V DC) |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Cable Color Code |
導線顏色 |
Red(+E)Black(-E)Green(+S)White(-S) |
